シングルモード半導体レーザ:WSLDシリーズは、波長範囲 405 nm ～ 1650 nm、出力範囲が 5 mW ～ 300 mW の単一横モードビームを空間出力する高品質のレーザダイオードです。 オプションで内蔵フォトダイオードを備えます。現在、標準パッケージは TO38、TO18、および TO5です。パッケージ化には Au-Sn はんだ技術を採用しています。 長期的な信頼性を確保するために、各レーザダイオードには工場で厳格な試験とエージングが行われています。 長期安定性の保証のため、保管温度についても、各レーザダイオードには温度範囲 -40 °C ～ +85 °C 、10 サイクルのヒートサイクル試験が行われています。
■ 特徴
|
 WSLD外観 |
半導体レーザとは■ 仕様
| 波長 405 ~ 660 nm | 波長 785 ~ 1350 nm | 波長 1370 ~ 1550 nm | 波長 1570 ~ 1650 nm |
| 注: √:あり, ○:オプション, ×:なし | |||
|
波長 |
製品番号 |
出力パワー |
横モード |
レーザ |
パッケージ |
内蔵PD |
TEC |
|
405nm |
WSLD-405-020m-1-PD |
20mW |
SM |
FP |
TO18 |
√ |
× |
|
WSLD-405-120m-1 |
120mW |
SM |
FP |
TO18 |
× |
× |
|
|
WSLD-405-120m-1-PD |
120mW |
SM |
FP |
TO18 |
√ |
× |
|
|
WSLD-405-150m-1(3.8mm) |
150mW |
SM |
FP |
TO38 |
× |
× |
|
|
WSLD-405-150m-1 |
150mW |
SM |
FP |
TO18 |
× |
× |
|
|
WSLD-405-150m-1-PD |
150mW |
SM |
FP |
TO18 |
√ |
× |
|
|
WSLD-405-200m-1 |
200mW |
SM |
FP |
TO38 |
× |
× |
|
|
WSLD-405-250m-1 |
250mW |
SM |
FP |
TO18 |
× |
× |
|
|
WSLD-405-300m-1(SM) |
300mW |
SM |
FP |
TO18 |
× |
× |
|
|
445nm |
WSLD-445-100m-1(5.6mm) |
100mW |
SM |
FP |
TO18 |
× |
× |
|
460nm |
WSLD-460-100m-1 |
100mW |
SM |
FP |
TO18 |
× |
× |
| 460nm |
WSLD-480-060m-1 |
60mW |
SM |
FP |
TO18 |
× |
× |
|
WSLD-480-080m-1 |
80mW |
SM |
FP |
TO18 |
× |
× |
|
|
488nm |
WSLD-488-060m-1 |
60mW |
SM |
FP |
TO18 |
× |
× |
|
WSLD-488-080m-1 |
80mW |
SM |
FP |
TO18 |
× |
× |
|
|
WSLD-488-100m-1 |
100mW |
SM |
FP |
TO18 |
× |
× |
|
| 495nm |
WSLD-495-060m-1 |
60mW |
SM |
FP |
TO18 |
× |
× |
|
WSLD-495-080m-1 |
80mW |
SM |
FP |
TO18 |
× |
× |
|
| 505nm |
WSLD-505-050m-1 |
50mW |
SM |
FP |
TO18 |
× |
× |
|
WSLD-505-080m-1 |
80mW |
SM |
FP |
TO18 |
× |
× |
|
| 510nm |
WSLD-510-050m-1 |
50mW |
SM |
FP |
TO18 |
× |
× |
|
WSLD-510-080m-1 |
80mW |
SM |
FP |
TO18 |
× |
× |
|
|
520nm |
WSLD-520-010m-1-PD |
10mW |
SM |
FP |
TO18 |
√ |
× |
|
WSLD-520-030m-1-PD |
30mW |
SM |
FP |
TO18 |
√ |
× |
|
|
WSLD-520-050m-1-PD |
50mW |
SM |
FP |
TO18 |
√ |
× |
|
|
WSLD-520-080m-1-PD |
80mW |
SM |
FP |
TO18 |
√ |
× |
|
|
WSLD-520-140m-1 |
140mW |
SM |
FP |
TO18 |
× |
× |
|
|
525nm |
WSLD-525-080m-1-PD |
80mW |
SM |
FP |
TO18 |
√ |
× |
|
635nm |
WSLD-635-015m-1-PD |
15mW |
SM |
FP |
TO18 |
√ |
× |
|
WSLD-635-030m-1-PD |
30mW |
SM |
FP |
TO18 |
√ |
× |
|
|
WSLD-635-050m-1-PD |
50mW |
SM |
FP |
TO18 |
√ |
× |
|
|
WSLD-635-180m-1 |
180mW |
SM |
FP |
TO18 |
× |
× |
|
|
WSLD-635-200m-1-PD |
200mW |
SM |
FP |
TO18 |
√ |
× |
|
|
660nm |
WSLD-660-050m-1-PD |
50mW |
SM |
FP |
TO18 |
√ |
× |
|
WSLD-660-100m-1 |
100mW |
SM |
FP |
TO18 |
× |
× |
|
|
WSLD-660-100m-1-PD |
100mW |
SM |
FP |
TO18 |
√ |
× |
|
|
WSLD-660-150m-1 |
150mW |
SM |
FP |
TO18 |
× |
× |
|
|
WSLD-660-180m-1 |
180mW |
SM |
FP |
TO18 |
× |
× |
| 波長 405 ~ 660 nm | 波長 785 ~ 1350 nm | 波長 1370 ~ 1550 nm | 波長 1570 ~ 1650 nm |
| 注: √:あり, ○:オプション, ×:なし | |||
|
波長 |
製品番号 |
出力パワー |
横モード |
レーザ |
パッケージ |
内蔵PD |
TEC |
|
785nm |
WSLD-785-100m-1-PD |
100mW |
SM |
FP |
TO18 |
√ |
× |
|
WSLD-785-100m-1-PD-R |
100mW |
SM |
FP |
TO18 |
√ |
× |
|
|
WSLD-785-120m-1-PD-R |
120mW |
SM |
FP |
TO18 |
√ |
× |
|
|
820nm |
WSLD-820-100m-1-PD |
100mW |
SM |
FP |
TO18 |
√ |
× |
|
WSLD-820-150m-1-PD |
150mW |
SM |
FP |
TO18 |
√ |
× |
|
|
830nm |
WSLD-830-050m-1-PD |
50mW |
SM |
FP |
TO18 |
√ |
× |
|
WSLD-830-100m-1-PD |
100mW |
SM |
FP |
TO18 |
√ |
× |
|
|
WSLD-830-150m-1-PD |
150mW |
SM |
FP |
TO18 |
√ |
× |
|
|
WSLD-830-200m-1-PD |
200mW |
SM |
FP |
TO18 |
√ |
× |
|
|
WSLD-830-250m-1-PD |
250mW |
SM |
FP |
TO18 |
√ |
× |
|
|
850nm |
WSLD-850-050m-1-PD |
50mW |
SM |
FP |
TO18 |
√ |
× |
|
880nm |
WSLD-880-010m-1-PD |
10mW |
SM |
FP |
TO18 |
√ |
× |
|
905nm |
WSLD-905-200m-1-PD |
200mW |
SM |
FP |
TO18 |
√ |
× |
|
940nm |
WSLD-940-200m-1-PD |
200mW |
SM |
FP |
TO18 |
√ |
× |
|
WSLD-940-300m-1-PD |
300mW |
SM |
FP |
TO18 |
√ |
× |
|
|
980nm |
WSLD-980-050m-1-PD |
50mW |
SM |
FP |
TO18 |
√ |
× |
|
1270nm |
WSLD-1270-020m-1-PD |
20mW |
SM |
DFB |
TO18(with Lens) |
√ |
× |
|
WSLD-1270-020m-1-PD-F |
20mW |
SM |
DFB |
TO18 |
√ |
× |
|
|
WSLD-1270-020m-6-T-PD |
20mW |
SM |
DFB |
TO6(with TEC) |
√ |
× |
|
|
WSLD-1270-030m-1-PD |
30mW |
SM |
DFB |
TO18(with Lens) |
√ |
× |
|
|
1290nm |
WSLD-1290-020m-1-PD |
20mW |
SM |
DFB |
TO18(with Lens) |
√ |
× |
|
WSLD-1290-020m-1-PD-F |
20mW |
SM |
DFB |
TO18 |
√ |
× |
|
|
WSLD-1290-020m-6-T-PD |
20mW |
SM |
DFB |
TO6(with TEC) |
√ |
√ |
|
|
WSLD-1290-030m-1-PD |
30mW |
SM |
DFB |
TO18(with Lens) |
√ |
× |
|
|
1310nm |
WSLD-1310-020m-1-PD |
20mW |
SM |
DFB |
TO18(with Lens) |
√ |
× |
|
WSLD-1310-020m-1-PD-F |
20mW |
SM |
DFB |
TO18 |
√ |
× |
|
|
WSLD-1310-020m-6-T-PD |
20mW |
SM |
DFB |
TO6(with TEC) |
√ |
√ |
|
|
WSLD-1310-030m-1-PD |
30mW |
SM |
DFB |
TO18(with Lens) |
√ |
× |
|
|
WSLD-1310-030m-1-PD-F |
30mW |
SM |
DFB |
TO18 |
√ |
× |
|
|
1330nm |
WSLD-1330-020m-1-PD |
20mW |
SM |
DFB |
TO18(with Lens) |
√ |
× |
|
WSLD-1330-020m-1-PD-F |
20mW |
SM |
DFB |
TO18 |
√ |
× |
|
|
WSLD-1330-020m-6-T-PD |
20mW |
SM |
DFB |
TO6(with TEC) |
√ |
× |
|
|
WSLD-1330-030m-1-PD |
30mW |
SM |
DFB |
TO18(with Lens) |
√ |
× |
|
|
1350nm |
WSLD-1350-020m-1-PD |
20mW |
SM |
DFB |
TO18(with Lens) |
√ |
× |
|
WSLD-1350-020m-1-PD-F |
20mW |
SM |
DFB |
TO18 |
√ |
× |
|
|
WSLD-1350-020m-6-T-PD |
20mW |
SM |
DFB |
TO6(with TEC) |
√ |
√ |
|
|
WSLD-1350-030m-1-PD |
30mW |
SM |
DFB |
TO18(with Lens) |
√ |
× |
| 波長 405 ~ 660 nm | 波長 785 ~ 1350 nm | 波長 1370 ~ 1550 nm | 波長 1570 ~ 1650 nm |
| 注: √:あり, ○:オプション, ×:なし | |||
|
波長 |
製品番号 |
出力パワー |
横モード |
レーザ |
パッケージ |
内蔵PD |
TEC |
|
1370nm |
WSLD-1370-020m-1-PD |
20mW |
SM |
DFB |
TO18(with Lens) |
√ |
× |
|
WSLD-1370-020m-1-PD-F |
20mW |
SM |
DFB |
TO18 |
√ |
× |
|
|
WSLD-1370-020m-6-T-PD |
20mW |
SM |
DFB |
TO6(with TEC) |
√ |
√ |
|
|
WSLD-1370-030m-1-PD |
30mW |
SM |
DFB |
TO18(with Lens) |
√ |
× |
|
|
1390nm |
WSLD-1390-020m-1-PD |
20mW |
SM |
DFB |
TO18(with Lens) |
√ |
× |
|
WSLD-1390-020m-1-PD-F |
20mW |
SM |
DFB |
TO18 |
√ |
× |
|
|
WSLD-1390-020m-6-T-PD |
20mW |
SM |
DFB |
TO6(with TEC) |
√ |
√ |
|
|
WSLD-1390-030m-1-PD |
30mW |
SM |
DFB |
TO18(with Lens) |
√ |
× |
|
|
1410nm |
WSLD-1410-015m-1-PD |
15mW |
SM |
DFB |
TO18(with Lens) |
√ |
× |
|
WSLD-1410-015m-1-PD-F |
15mW |
SM |
DFB |
TO18 |
√ |
× |
|
|
WSLD-1410-020m-1-PD |
20mW |
SM |
DFB |
TO18(with Lens) |
√ |
× |
|
|
WSLD-1410-020m-6-T-PD |
20mW |
SM |
DFB |
TO6(with TEC) |
√ |
√ |
|
|
1430nm |
WSLD-1430-015m-1-PD |
15mW |
SM |
DFB |
TO18(with Lens) |
√ |
× |
|
WSLD-1430-015m-1-PD-F |
15mW |
SM |
DFB |
TO18 |
√ |
× |
|
|
WSLD-1430-020m-1-PD |
20mW |
SM |
DFB |
TO18(with Lens) |
√ |
× |
|
|
WSLD-1430-020m-6-T-PD |
20mW |
SM |
DFB |
TO6(with TEC) |
√ |
√ |
|
|
1450nm |
WSLD-1450-015m-1-PD |
15mW |
SM |
DFB |
TO18(with Lens) |
√ |
× |
|
WSLD-1450-015m-1-PD-F |
15mW |
SM |
DFB |
TO18 |
√ |
× |
|
|
WSLD-1450-020m-1-PD |
20mW |
SM |
DFB |
TO18(with Lens) |
√ |
× |
|
|
WSLD-1450-020m-6-T-PD |
20mW |
SM |
DFB |
TO6(with TEC) |
√ |
√ |
|
|
1470nm |
WSLD-1470-015m-1-PD |
15mW |
SM |
DFB |
TO18(with Lens) |
√ |
× |
|
WSLD-1470-015m-1-PD-F |
15mW |
SM |
DFB |
TO18 |
√ |
× |
|
|
WSLD-1470-020m-1-PD |
20mW |
SM |
DFB |
TO18(with Lens) |
√ |
× |
|
|
WSLD-1470-020m-6-T-PD |
20mW |
SM |
DFB |
TO6(with TEC) |
√ |
√ |
|
|
1490nm |
WSLD-1490-015m-1-PD |
15mW |
SM |
DFB |
TO18(with Lens) |
√ |
× |
|
WSLD-1490-015m-1-PD-F |
15mW |
SM |
DFB |
TO18 |
√ |
× |
|
|
WSLD-1490-020m-1-PD |
20mW |
SM |
DFB |
TO18(with Lens) |
√ |
× |
|
|
WSLD-1490-020m-6-T-PD |
20mW |
SM |
DFB |
TO6(with TEC) |
√ |
√ |
|
|
1510nm |
WSLD-1510-015m-1-PD |
15mW |
SM |
DFB |
TO18(with Lens) |
√ |
× |
|
WSLD-1510-015m-1-PD-F |
15mW |
SM |
DFB |
TO18 |
√ |
× |
|
|
WSLD-1510-020m-1-PD |
20mW |
SM |
DFB |
TO18(with Lens) |
√ |
× |
|
|
WSLD-1510-020m-6-T-PD |
20mW |
SM |
DFB |
TO6(with TEC) |
√ |
√ |
|
|
1530nm |
WSLD-1530-015m-1-PD |
15mW |
SM |
DFB |
TO18(with Lens) |
√ |
× |
|
WSLD-1530-015m-1-PD-F |
15mW |
SM |
DFB |
TO18 |
√ |
× |
|
|
WSLD-1530-020m-1-PD |
20mW |
SM |
DFB |
TO18(with Lens) |
√ |
× |
|
|
WSLD-1530-020m-6-T-PD |
20mW |
SM |
DFB |
TO6(with TEC) |
√ |
√ |
|
|
1550nm |
WSLD-1550-015m-1-PD |
15mW |
SM |
DFB |
TO18(with Lens) |
√ |
× |
|
WSLD-1550-015m-1-PD-F |
15mW |
SM |
DFB |
TO18 |
√ |
× |
|
|
WSLD-1550-020m-1-PD |
20mW |
SM |
DFB |
TO18(with Lens) |
√ |
× |
|
|
WSLD-1550-020m-1-PD-F |
20mW |
SM |
DFB |
TO18 |
√ |
× |
|
|
WSLD-1550-020m-6-T-PD |
20mW |
SM |
DFB |
TO6(with TEC) |
√ |
√ |
| 波長 405 ~ 660 nm | 波長 785 ~ 1350 nm | 波長 1370 ~ 1550 nm | 波長 1570 ~ 1650 nm |
| 注: √:あり, ○:オプション, ×:なし | |||
|
波長 |
製品番号 |
出力パワー |
横モード |
レーザ |
パッケージ |
内蔵PD |
TEC |
| 1570nm |
WSLD-1570-015m-1-PD |
15mW |
SM |
DFB |
TO18(with Lens) |
√ |
× |
|
WSLD-1570-015m-1-PD-F |
15mW |
SM |
DFB |
TO18 |
√ |
× |
|
|
WSLD-1570-020m-1-PD |
20mW |
SM |
DFB |
TO18(with Lens) |
√ |
× |
|
|
WSLD-1570-020m-6-T-PD |
20mW |
SM |
DFB |
TO6(with TEC) |
√ |
√ |
|
|
1590nm |
WSLD-1590-010m-1-PD-F |
10mW |
SM |
DFB |
TO18 |
√ |
× |
|
WSLD-1590-015m-1-PD |
15mW |
SM |
DFB |
TO18(with Lens) |
√ |
× |
|
|
WSLD-1590-015m-1-PD-F |
15mW |
SM |
DFB |
TO18 |
√ |
× |
|
|
WSLD-1590-020m-1-PD |
20mW |
SM |
DFB |
TO18(with Lens) |
√ |
× |
|
|
WSLD-1590-020m-6-T-PD |
20mW |
SM |
DFB |
TO6(with TEC) |
√ |
√ |
|
|
1610nm |
WSLD-1610-010m-1-PD-F |
10mW |
SM |
DFB |
TO18 |
√ |
× |
|
WSLD-1610-015m-1-PD |
15mW |
SM |
DFB |
TO18(with Lens) |
√ |
× |
|
|
WSLD-1610-015m-1-PD-F |
15mW |
SM |
DFB |
TO18 |
√ |
× |
|
|
WSLD-1610-020m-1-PD |
20mW |
SM |
DFB |
TO18(with Lens) |
√ |
× |
|
|
WSLD-1610-020m-6-T-PD |
20mW |
SM |
DFB |
TO6(with TEC) |
√ |
√ |
|
|
1625nm |
WSLD-1625-010m-1-PD-F |
10mW |
SM |
DFB |
TO18 |
√ |
× |
|
WSLD-1625-015m-1-PD |
15mW |
SM |
DFB |
TO18(with Lens) |
√ |
× |
|
|
WSLD-1625-015m-1-PD-F |
15mW |
SM |
DFB |
TO18 |
√ |
× |
|
|
WSLD-1625-020m-1-PD |
20mW |
SM |
DFB |
TO18(with Lens) |
√ |
× |
|
|
WSLD-1625-020m-6-T-PD |
20mW |
SM |
DFB |
TO6(with TEC) |
√ |
√ |
|
|
1650nm |
WSLD-1650-010m-1-PD-F |
10mW |
SM |
DFB |
TO18 |
√ |
× |
|
WSLD-1650-015m-1-PD |
15mW |
SM |
DFB |
TO18(with Lens) |
√ |
× |
|
|
WSLD-1650-015m-1-PD-F |
15mW |
SM |
DFB |
TO18 |
√ |
× |
|
|
WSLD-1650-020m-1-PD |
20mW |
SM |
DFB |
TO18(with Lens) |
√ |
× |
|
|
WSLD-1650-020m-6-T-PD |
20mW |
SM |
DFB |
TO6(with TEC) |
√ |
√ |

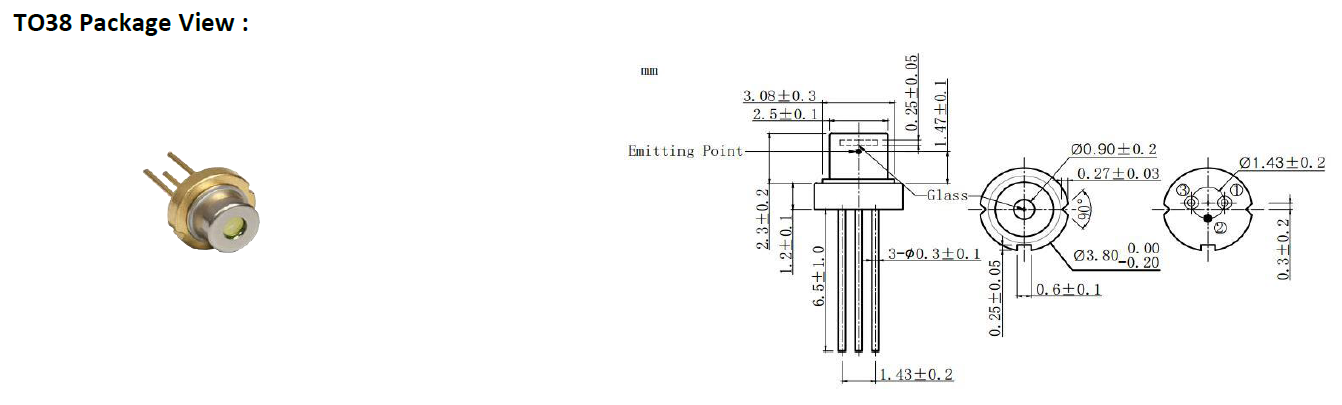

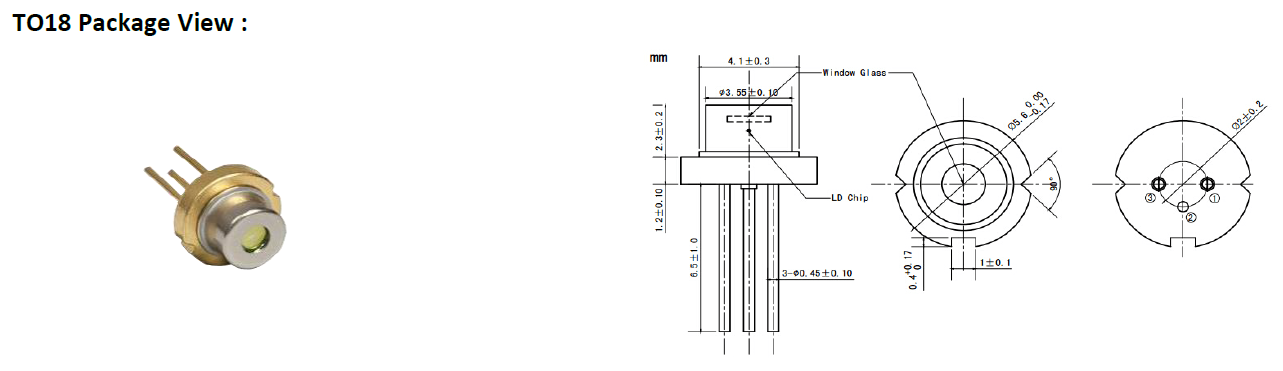

■ パッケージ図面
